Red Outdoor Safety Retractable Barrier - Twin 3.4m Red & White Chevron Belt
| Quantity | Discount | Save |
|---|---|---|
| 5 - 9 | 5% off | £3.80 |
| 10 + | 8% off | £6.08 |

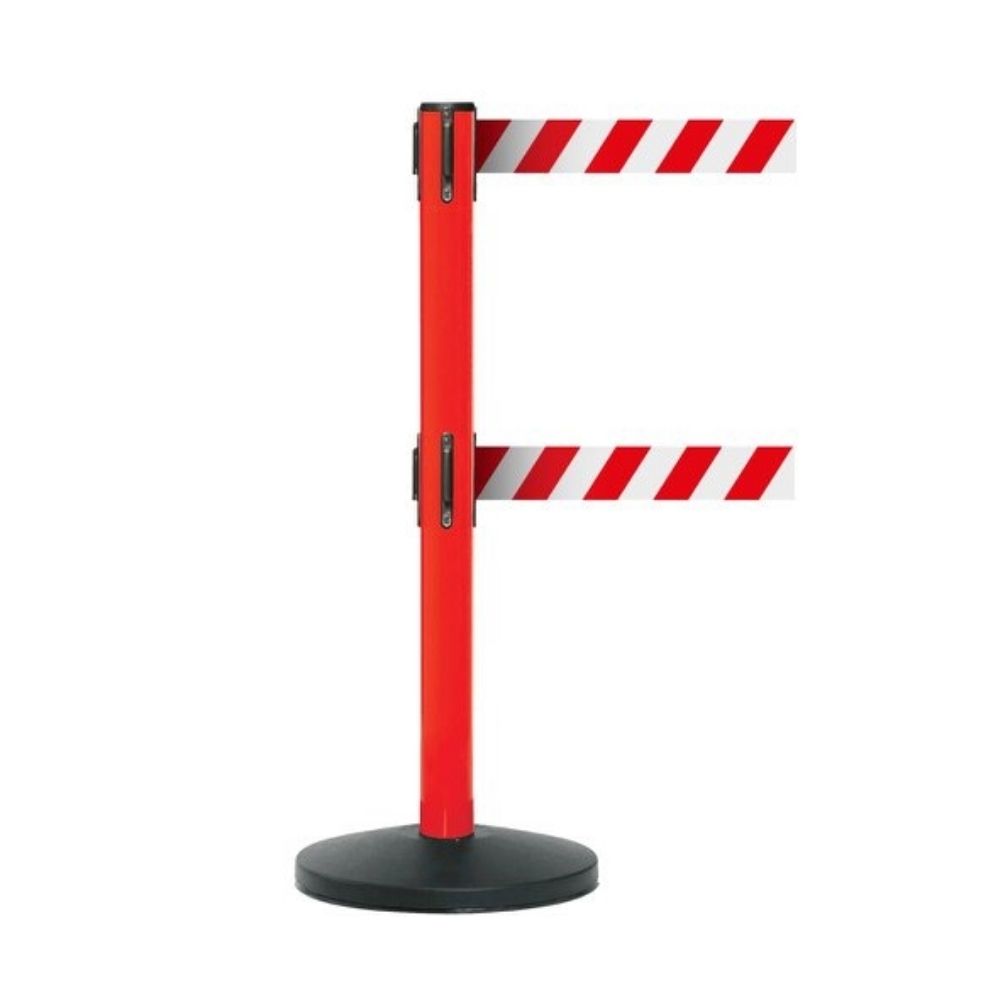

The Displaysense BQT450RW is a queue barrier, 1015mm high by 3400mm wide by 355mm deep, with a red, white steel construction. It is delivered free to UK Mainland.
Finish your display like a professional
Overview
Description
Specifications
Delivery & Returns
FAQs
Knowledge Hub
Twin Belt Safety Barriers Make a Boundary Hard to Cross
A single belt across a hazard leaves open space above and below the line, making it easier for people to step over or duck underneath. The BQT450RW uses two belts mounted one above the other, closing both gaps and creating a boundary that is harder to cross casually. Both belts carry red and white chevrons, a pattern that signals a hazard before anyone is close enough to read additional wording. The red powder-coated steel post stands on a concrete-filled galvanised base, keeping the weight low and making the barrier suitable for outdoor use. Each belt retracts slowly through a braked cassette rather than snapping back quickly, while the universal end locks connect with other makes of barrier. Particularly well suited to construction sites, car parks and maintenance teams that need to close off areas people should not enter.
How a Retractable Belt Barrier Handles Outdoor Use
- Two belts, not one: The second belt sits beneath the first, closing the lower gap left by a single-belt barrier. Crossing the line therefore takes more deliberate effort, while the two parallel belts create a clearer closure when viewed from a distance.
- Chevrons say hazard before words do: Red and white chevrons provide an immediate visual warning across a car park or yard, even before somebody is close enough to read a sign. Both belts carry the pattern, helping the closure remain visible to pedestrians nearby and vehicles further away.
- Braked belts that will not whip back: An internal brake slows each belt as it retracts, giving a more controlled return than an unbraked cassette. This is particularly useful where operatives open and close the same barrier run several times during a shift.
- Concrete-filled galvanised base: Concrete inside the base keeps most of the weight close to floor level, helping the barrier remain stable if knocked. The galvanised shell is also suited to outdoor conditions and provides protection against corrosion.

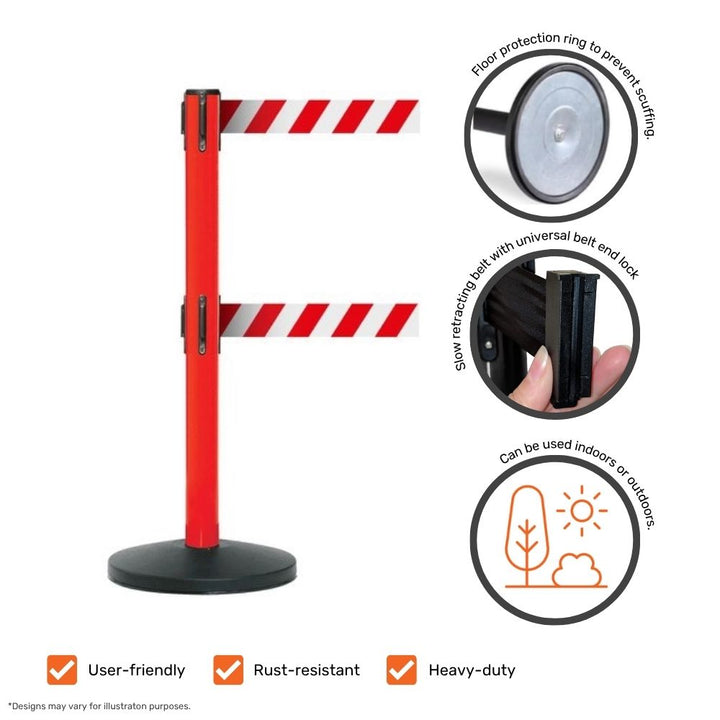

- Rubber ring stops the scuffing: A protection ring runs beneath the base, helping protect showroom floors, polished warehouse aisles and tiled entrances when the barrier is moved into position. The rubber also adds grip on outdoor surfaces such as tarmac and concrete.
- Universal end lock joins the run: Each belt end connects with other makes of retractable barrier as well as its own, allowing an existing fleet to be extended rather than replaced. Runs can be built to the required length and then taken down again when the work is complete.
Who Puts a Red Chevron Safety Barrier to Work

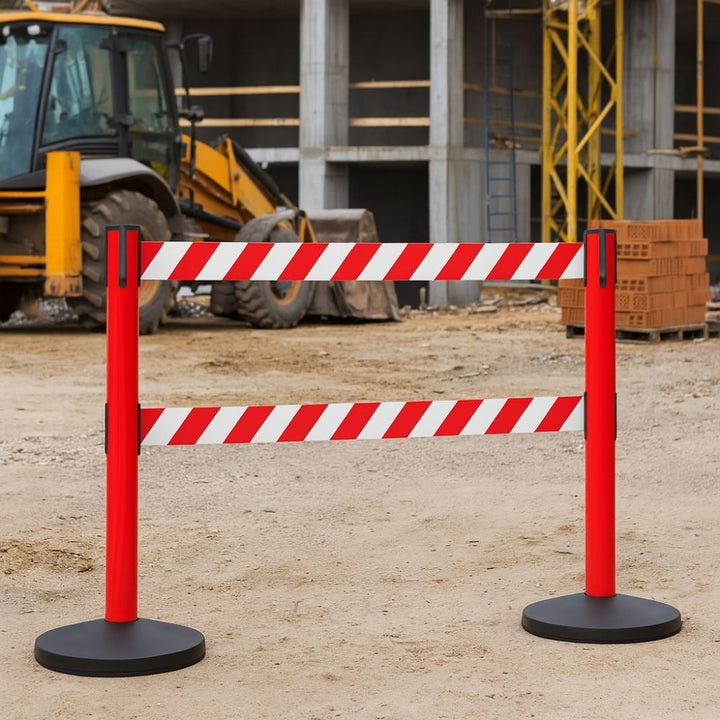

| Construction and Building Sites | Use the barriers around excavations, scaffold bases, wet concrete and plant movement areas where a clear boundary is needed. The posts can be set out as the shift begins, repositioned as work moves and removed again before the site closes. |
| Car Parks and Service Yards | Close off bays for resurfacing, mark spillages, keep traffic clear of deliveries or restrict access to a flooded corner. The chevron pattern remains visible across open areas where a smaller sign may be easier to miss. |
| Warehouses and Distribution Centres | Mark racking under repair, forklift working areas or aisles temporarily closed for stock counts. The barrier creates a freestanding line without fixing anything to the floor and can be removed as soon as the aisle reopens. |
| Facilities and Maintenance Teams | Use the posts around lift repairs, roof access points, cleaning areas or open plant rooms while an engineer works. One person can carry a barrier out, set up the line and clear it again without assistance. |
| Councils, Highways and Utilities | Suitable for footpath closures, street furniture repairs, tree work and excavations in public areas where the boundary needs to remain visible in poor light, heavy rain or on dark winter afternoons. |
| Events, Festivals and Temporary Sites | Create boundaries around back of house areas, generator compounds, vehicle routes and other places the public should not enter. The barriers travel to site, position without tools and can be loaded back into the van once the event is over. |
One Belt or Two, Red or Yellow?
Where a single line is enough, the single belt red chevron barrier uses the same post with one cassette. Where site rules require yellow, the twin belt yellow and black chevron barrier uses the same build in the alternative colour. Belts are also available with wording printed in place of chevrons.
Kitting out a site or a fleet? Call 01279460460 or tell us the run you need to close and a post count will come back to you the same day.
The Displaysense BQT450RW is a Red Outdoor Safety Retractable Barrier with twin 3.4m red and white chevron belts, also searched as a twin belt safety barrier, a retractable belt barrier or a hazard barrier post. Two belts are carried one above the other, each 3.4m long, each printed with red and white chevrons, which closes the gap a single belt leaves above and below. Post height 1015mm. Base 355mm across, galvanised and concrete filled, with a rubber protection ring underneath to prevent floor scuffing. Total weight 9kg. Post is powder-coated steel in red. Belt cassettes return slowly under an internal brake to prevent snapback, and each belt finishes in a universal end lock that connects to other makes of barrier. Suitable for indoor and outdoor use. Used on construction sites, in car parks, service yards, warehouses, distribution centres, by facilities and maintenance teams, councils, highways and utilities crews, and at events and festivals. Also available as a single belt version and in yellow with yellow and black chevrons, plus worded belts. Displaysense, UK display product specialists since 1978.
A single belt at waist height only creates one line across the route, leaving space above and below that can still be crossed. On a site where the area beyond the barrier contains an open excavation or a reversing vehicle, reducing those easy routes matters. Adding a second belt beneath the first closes the lower gap and makes passing underneath far less straightforward. It also makes the barrier read more clearly from a distance. One line can look temporary or easily overlooked, while two parallel chevron belts present a much more deliberate closure.
Releasing a fully extended belt can create a risk if the cassette allows it to retract too quickly. The belt remains under tension while extended, and an unbraked mechanism can pull it back at speed. This cassette uses an internal brake to slow the return to a walking pace. The belt therefore retracts in a more controlled way without relying on staff to guide it back by hand, which is particularly useful when a crew is clearing a site in poor weather or fading light.
The base gets its weight and durability from concrete housed inside a galvanised shell. Keeping the mass close to floor level helps the barrier remain stable if it is knocked by a trolley wheel or shoulder. The galvanised finish also suits outdoor use, where the base may be exposed to regular weather and handling. A rubber ring underneath keeps metal away from the floor while adding grip on tarmac, concrete and tiles.
Retractable barriers are often used as part of a longer run rather than on their own, and that run may need to connect with posts already on site. The universal end lock is designed for that purpose. Each belt can clip into other makes as well as its own, allowing an existing set of posts to be extended rather than replaced. Runs can be built to the length required, then taken down again with each belt retracting into its own cassette.
What Ships with This Retractable Safety Barrier
- 1 x red powder-coated steel post fitted with two belt cassettes
- 2 x red and white chevron belts, each finishing in a universal end lock
- 1 x concrete-filled galvanised base with a rubber protection ring
Closing Off a Long Run?
Measure the distance you need to close and divide it by the belt length, then add one post so the run has a post at each end. Send us the site details and we will work out the quantity, including the spare posts many crews keep available for corners.
Buying for a depot or a fleet? Call 01279460460 or send us the details.
The Displaysense BQT450RW is a Red Outdoor Safety Retractable Barrier carrying twin 3.4m red and white chevron belts, sold as a twin belt barrier post, safety barrier or hazard barrier. The second belt sits below the first, removing the gap a single belt leaves and making the closure visible as a deliberate one from a distance. Each belt runs to 3.4m and returns slowly on a braked cassette, so a released belt will not snap back. Belt ends carry a universal lock that connects to other makes of barrier, letting runs be extended across an existing fleet. Post is powder-coated steel in red, 1015mm tall. The base is 355mm across, galvanised and filled with concrete to keep the weight low, and a rubber ring underneath prevents floor scuffing while gripping tarmac and concrete. Total weight 9kg. Indoor and outdoor use. Chosen by construction sites, car parks, service yards, warehouses, distribution centres, facilities and maintenance teams, councils, highways and utilities crews, and event organisers. A single belt version and a yellow and black chevron version are also made, along with worded belts. Displaysense, UK display product specialists since 1978.

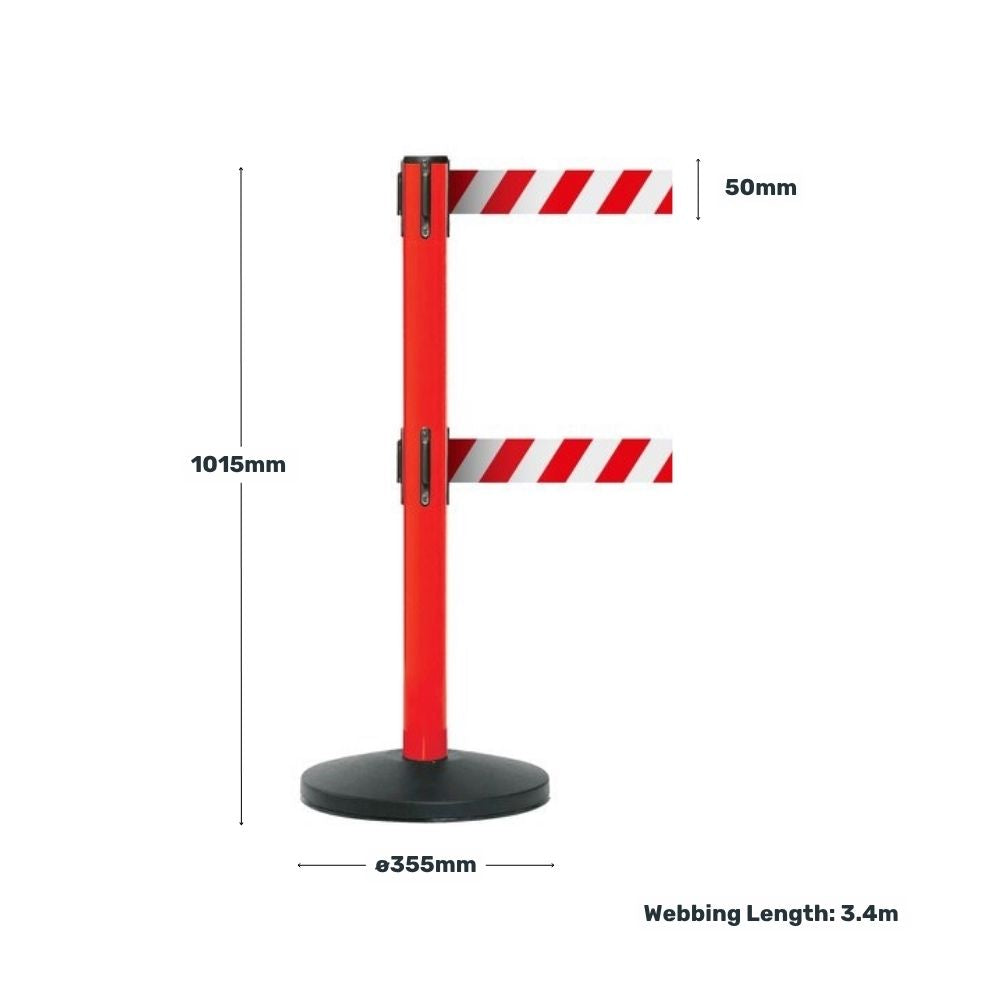

Full specification for this red twin belt outdoor safety retractable barrier. All figures refer to one complete barrier, including the post and base. Measure the distance you need to close before working out how many posts are required for the run.
| Specification | Detail | What This Means for You |
|---|---|---|
| Belts Fitted | Two, mounted one above the other | The lower belt closes the gap left beneath a single-belt barrier, making the line harder to duck under. Two parallel chevron lines also make the closure clearer when viewed from across a yard. |
| Belt Length | 3.4m each | Each belt extends to 3.4m between posts, allowing a longer closure to be created with fewer posts and reducing the number that need to be positioned at the start and collected at the end of a shift. |
| Belt Print | Red and white chevron, both belts | The red and white chevron pattern provides a clear hazard signal at both heights, making it visible to pedestrians nearby and from vehicles further away. |
| Belt Return | Slow return with internal brake | The internal brake slows the belt as it retracts, giving a controlled return rather than allowing it to snap back quickly. This is particularly useful where crews open and close the same run repeatedly. |
| Belt End | Universal end lock | The end lock connects to other makes of retractable barrier as well as its own, allowing an existing fleet to be extended without replacing the barriers already in use. |
| Post Height | 1015mm | The upper belt sits at the height commonly expected for a boundary, while the second belt runs below it at shin to knee level to close the lower gap left by a single belt. |
| Post Finish | Red powder-coated steel | The red finish provides a visible warning before the belt detail can be seen clearly, while the powder coating is made to withstand the handling involved in loading, carrying and setting the post down on rough ground. |
| Base | Concrete filled, galvanised, 355mm across | The concrete keeps most of the weight close to floor level, helping the barrier remain stable if knocked, while the galvanised finish provides protection against corrosion. |
| Base Underside | Rubber protection ring | The rubber ring helps protect finished floors from scuffing when the barrier is moved into position and also adds grip on outdoor surfaces such as tarmac and concrete. |
| Total Weight | 9kg | At 9kg, the barrier can be carried and repositioned by one person during the day, with most of the weight concentrated in the base rather than higher up the post. |
| Environment | Indoor and outdoor | Rated for both environments, the same barrier can be used in a warehouse aisle or an open car park without needing separate models for each setting. |
| Also Available | Single belt red chevron, twin yellow and black chevron, worded belts | The same post is also available with a single belt, in yellow where site rules require it, and with wording printed on the belt instead of chevrons. |
Free delivery on every order, no minimum spend
UK Mainland standard delivery included on everything we sell.
Standard
Free
Always included, no minimum order
Express
£9.95
Express options shown at checkout where available
Lead time
2 to 3 days
Working days, UK Mainland
Returns
28 days
Original condition and packaging
Good to know
- Orders before 4pm typically ship the same day
- Tracking email sent on dispatch
- Ground-floor, accessible delivery point
Returns must be unused and in original packaging. Full delivery information · Returns policy
Questions About Twin Belt Safety Barriers
Q: What is the best safety barrier for a construction site?
A: The BQT450RW is particularly well suited to construction sites, using two 3.4m red and white chevron belts rather than a single belt. The lower belt closes the gap underneath, while the concrete filled galvanised base is designed to cope with outdoor conditions.
Q: Why use a twin belt barrier instead of a single belt?
A: A single belt leaves open space above and below that people may step over or duck under. Adding a second belt below the first closes the lower gap and makes the boundary less easy to cross casually. Two chevron lines also create a clearer visual closure from a distance than a single line.
Q: How long is each belt and how far apart can the posts go?
A: Both belts extend to 3.4m, allowing the posts to be positioned up to that distance apart. Extending the belt fully gives the longest possible run with fewer posts, while shorter spans keep the belt tighter and are generally more suitable around corners or in windy conditions.
Q: Is this barrier safe to use outdoors in wet weather?
A: Yes. The base is galvanised and filled with concrete, while the post is made from powder-coated steel. The barrier is rated for both indoor and outdoor use, so the same model can be used in a warehouse aisle or an open car park.
Q: What stops the belt snapping back when it is released?
A: An internal brake inside the cassette slows the belt as it retracts, so it returns in a controlled way rather than whipping back quickly. This is particularly useful where crews open and close the same barrier run several times during a shift.
Q: Will this connect to barriers we already own?
A: In many cases, yes. Each belt uses a universal end lock designed to connect with other makes of retractable barrier as well as its own. This can allow an existing fleet to be extended rather than replaced.
Q: Will the base mark a warehouse or showroom floor?
A: It is designed to help protect the floor. A rubber protection ring runs beneath the base, keeping bare metal away from the surface when the barrier is moved into position. The ring also adds grip, helping the post stay steady on tarmac and concrete when the belt is extended.
Q: How heavy is it and can one person move it?
A: The complete barrier weighs 9kg, with most of that weight concentrated in the base rather than the post. One person can carry it, set up a line and clear it again without assistance, which suits layouts that change during the working day.
Q: Red or yellow: which chevron barrier should we choose?
A: Red and white chevrons are commonly used for hazards and closures in public areas. Choose the twin belt yellow and black chevron barrier where site rules or an existing colour scheme call for yellow. The post, base and belt mechanism are identical in both.
Q: Do we need two belts, or is one enough for our site?
A: A single belt can suit advisory boundaries used by staff. Twin belts provide a more substantial closure where the public is involved, where the hazard behind the line is more serious or where people have previously crossed the barrier. The single belt version uses the same post with one cassette.
Q: How many barrier posts do we need for a run?
A: Divide the distance being closed by the belt length, then add one post so the run has a post at each end. Many crews also keep a couple of spare posts for corners, where shorter spans help keep the belt tighter. Send us the site measurements and we will check the quantity.
Q: Is the red chevron barrier available with free UK delivery?
A: Yes. The BQT450RW includes free UK mainland delivery and a 28-day returns policy. Displaysense has supplied UK sites with display and crowd control products since 1978. Belts are also available with wording instead of chevrons where the closure needs to communicate a specific message.
Site Safety and Crowd Control Reading
Selecting the right barrier is only one part of the setup. The position of the line, the signage or other markers around it and the way people are expected to move through the space are equally important, while outdoor equipment also needs to cope with the weather as well as regular handling. These guides look at barrier options, crowd management, effective event signage and how one exposed coastal site approached the challenge of durability.
