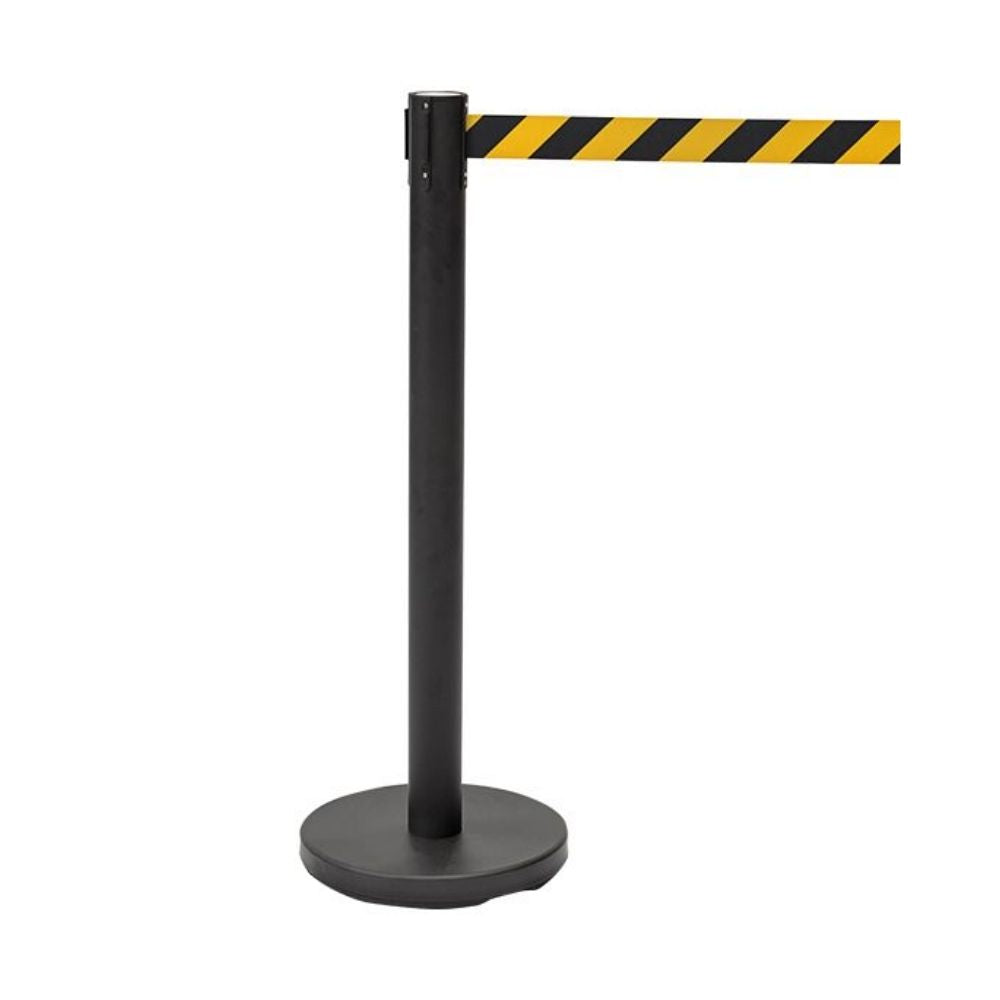

Steel Retractable Barrier - 3.4m Yellow & Black Chevron Belt
| Quantity | Discount | Save |
|---|---|---|
| 5 - 9 | 5% off | £3.95 |
| 10 + | 8% off | £6.32 |
The Displaysense BQ250Y is a queue barrier, 1015mm high by 3400mm wide by 355mm deep, with iron. It is delivered free to UK Mainland.
Finish your display like a professional
Overview
Description
Specifications
Delivery & Returns
FAQs
Knowledge Hub
Mark Out a Hazard Zone With One Retractable Barrier
Marking a hazard temporarily is where most sites improvise, and improvised boundaries fail in predictable ways. Tape sags, tears and ends up trodden into the floor, while cones say roadworks and get moved by anybody in a hurry. A printed sign only works for whoever walks close enough to read it. The BQ250Y replaces all three with something people obey on sight, because yellow and black diagonals have meant caution on British sites for decades and nobody needs telling twice. It goes down in seconds, comes up just as fast, and leaves nothing behind when the job finishes. Between uses it stacks in a corner instead of being thrown away like a roll of tape. Best suited for warehouses, event build-ups and back-of-house retail where a boundary has to appear fast, read as a warning and disappear again the same day.
Why a Retractable Belt Barrier Beats Tape and Cones
- A belt that reaches 3.4 metres: Longer than most retractable barriers manage, which changes the arithmetic on a site. A given run needs fewer posts, so fencing off the same area takes less stock off the shelf and less time to set out at the start of a shift.
- The belt brakes instead of snapping: A torque spring under a brake draws the webbing back at a controlled speed, so it never fires at the hand that let go. Anybody caught by an unbraked belt knows why that matters, and it matters more where a post gets used forty times a day.
- One post does the job of three: A belt draws from the head and three more sockets ring it, so any post works as an end, a corner or a junction. Sites stock one item instead of separate terminal and corner versions, and any shape gets built from whatever is on the van.
- It joins the barriers you already own: The end clip matches the sockets fitted to most major barrier brands, so new posts extend an existing line rather than starting a rival set beside it. Locking the clip means a passing trolley cannot drop a whole run in one go.
- Nothing gets drilled or fixed down: Posts stand on their own weight, so a boundary appears in a leased unit, a listed building or a hall on a two-day hire without anyone touching the fabric of it. When the job ends the floor is exactly as it was found, with nothing to fill or make good.
- Built for being knocked about: Cast iron low in the base takes the impact when somebody walks into a post, and a rust-resistant finish handles a loading bay, a wash-down area or a damp night. Heavy-duty, not a light unit that bends the first time somebody drops it.

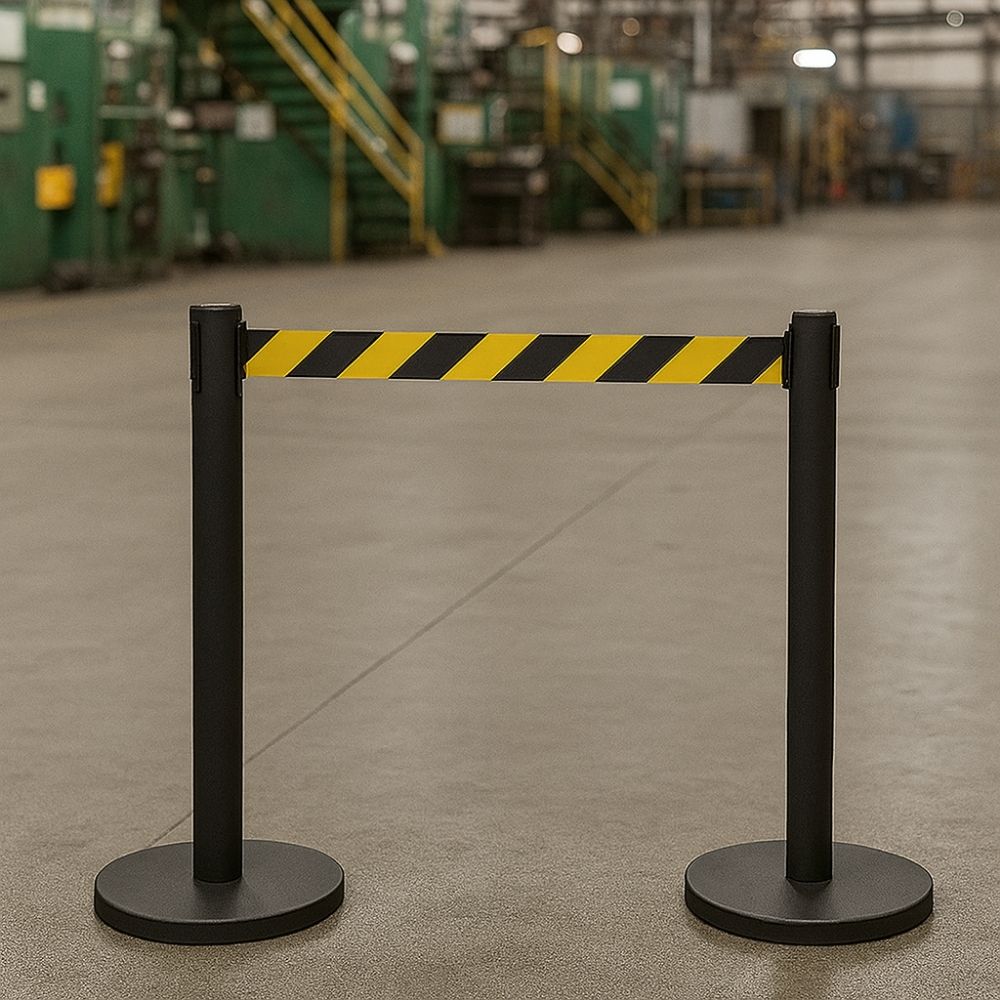

Where a Chevron Safety Barrier Post Suits a Site
| Warehouses and Logistics | Spills, pallet drops and forklift routes get boundaries in seconds, and the chevron pattern carries the warning down a long aisle. A plain belt in the same spot just looks like queue management to a driver at the far end. |
| Construction and Facilities | Wet floors, live repairs and temporary exclusions all need marking without drilling anything into a building. Posts go down, the run signals caution immediately, and everything lifts again the moment the job finishes. |
| Events, Exhibitions and Build-Ups | During a build, half a hall is a hazard and the other half is public. Four-way connection means a crew fences off rigging, cabling or an unfinished stand using only the posts already on the van, with no extra corner units. |
| Airports, Stations and Transport | Cleaning operations, out-of-service escalators and restricted staff routes all get marked in concourses where the public keep moving. High-contrast diagonals register at a glance and in peripheral vision, which a written notice never manages. |
| Retail Back-of-House and Stockrooms | Deliveries, cage runs and stock lifts create temporary hazards behind the shop floor. A barrier that reading as warning, not decoration, keeps staff out of a working area with no supervisor posted there to enforce it. |
| Manufacturing and Industrial Sites | Machinery under maintenance, cordoned test areas and marked walkways all need a boundary that survives being knocked. Cast iron weight and rust-resistant steel take the handling a production floor gives them week after week. |
Need a Different Belt or a Polished Post?
The same chevron belt comes on a polished steel post where a smarter finish suits the setting, and the same black post takes a plain black belt for queue management instead of hazard warning. All three share the 3.4m belt length and the four-way connection.
Call us on 01279460460 or tell us the layout and we will work out how many posts a run needs end to end.
BQ250Y is a Steel Retractable Barrier with a 3.4m Yellow and Black Chevron Belt from Displaysense. What marks it out is a hazard-pattern chevron belt on a braked retractable cassette with four-way post connection. Belt length 3.4m in yellow and black chevron. Slow retracting belt with integrated brake and torque spring. Locking universal end clip. Three receiving splines plus one belt for four-way barrier configuration. Black steel post with cast iron base. Full circumference rubber ring for floor protection. Rust-resistant finish. Heavy-duty construction. Indoor use and sheltered temporary outdoor use. Used in warehouses, logistics, construction, facilities management, events, exhibitions, airports, stations, transport hubs, retail stockrooms, manufacturing and industrial sites. Also available with a polished steel post and with black, red or blue belts. Displaysense, UK display product specialists since 1978.
Colour is carrying the safety message here, faster than any sign manages. Diagonal yellow and black has meant caution on British sites for decades. A run of this belt gets read and understood before anybody is close enough to see a notice. That distance matters. A forklift driver at the far end of an aisle, or somebody walking a concourse at pace, registers the diagonals in peripheral vision and adjusts course. A plain black or blue belt in the same position says orderly queue, which is a completely different instruction.
Inside the post head sits a cassette holding 3.4 metres of webbing under spring tension, and the important component is the brake fitted alongside it. Without one, a released belt travels back at whatever speed the spring dictates, which is fast enough to catch a hand or a face. The brake meters that return so the webbing draws in steadily. Posts get handled dozens of times a day by people whose attention is on the job, not the equipment. A controlled retraction is what separates a tool from a hazard in its own right.

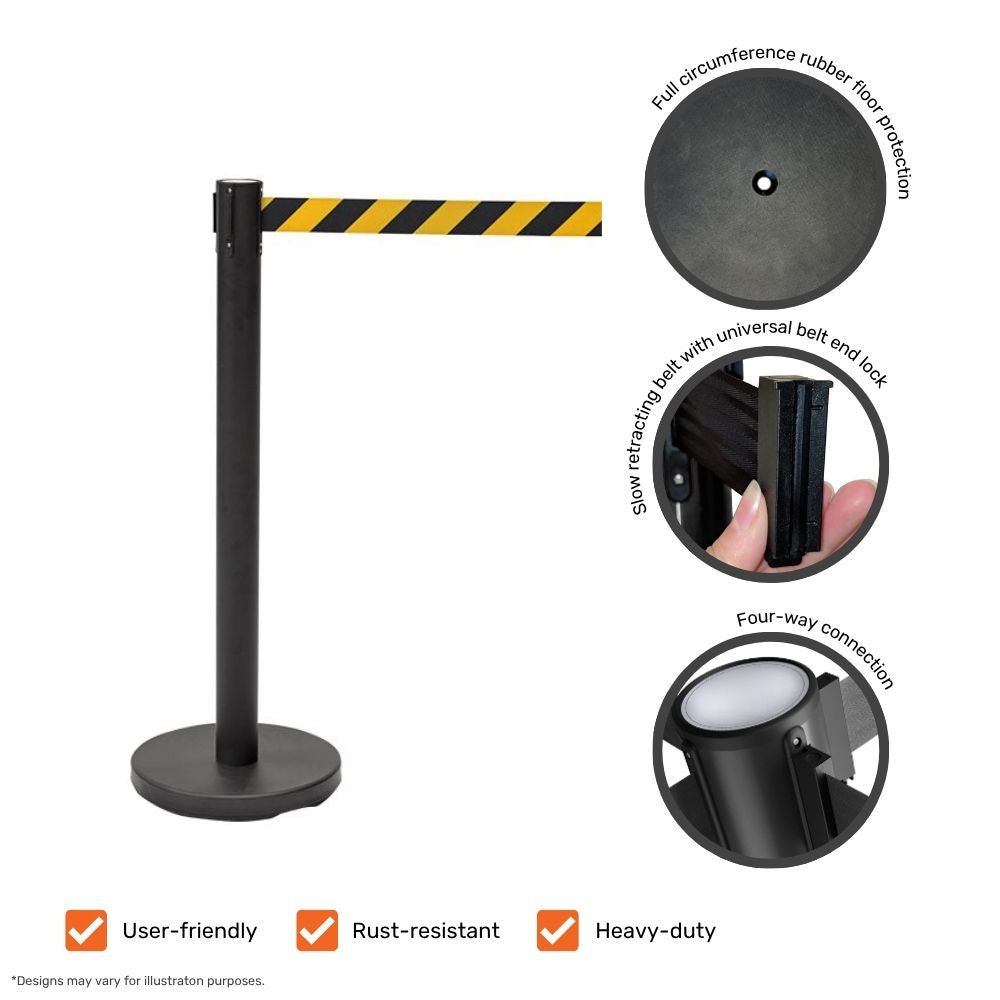

Four-way connection is what turns single posts into a layout. One belt pulls from the cassette and three further receivers sit around the head, so any post accepts belts arriving from up to four directions. A straight run needs only two. A corner uses two adjacent. A closed square around a spill or a machine uses posts as junctions, never dead ends. In practice a site buys one type of post rather than stocking corner and terminal versions, and whatever shape a job calls for gets built from whatever is already loaded on the van.
Stability comes from cast iron placed low in the base, which is the part doing the work when somebody walks into a post or a trolley clips it. Underneath, rubber runs the full circumference instead of sitting as three or four pads, so a polished concrete or resin floor takes no marking and the base grips instead of skidding. The steel above it is finished to resist rust, which is what a loading bay, a wash-down area or an occasional night outdoors asks of a barrier that gets moved and stacked constantly.
What Ships in Your Pack
- 1 x black steel barrier post with cast iron base and rubber floor ring
- 1 x 3.4m yellow and black chevron retractable belt with universal locking end clip
- 3 x receiving splines for four-way connection, fitted to the post head
- 1 x set of assembly fixings and instructions
Working Out How Many Posts a Site Needs?
Barriers go out to warehouses, event contractors, airports and facilities teams across the UK, usually in quantity. Send us the run lengths or a sketch of the area and we will work out how many posts the area takes, corners included.
Call us on 01279460460 or send us the details and we will come back to you.

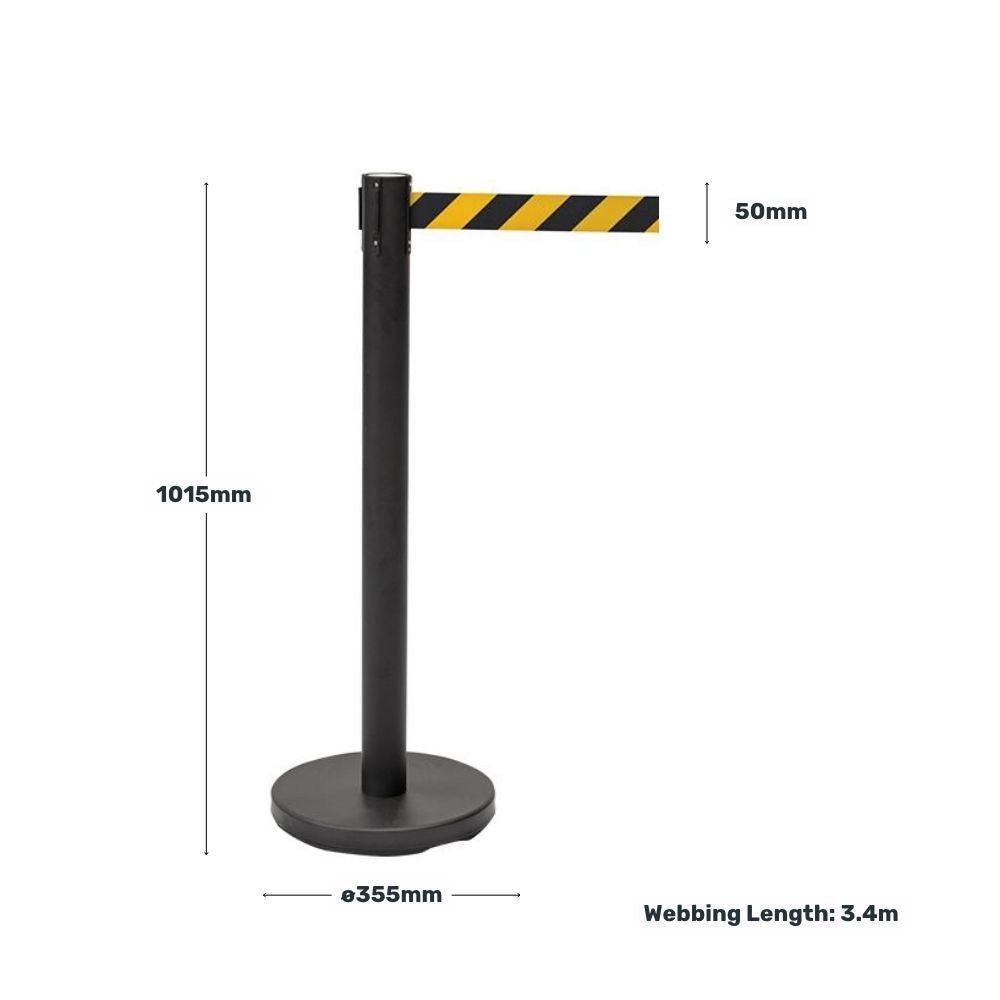

BQ250Y specification digest. Steel Retractable Barrier with 3.4m Yellow and Black Chevron Belt. Dimensions 1015mm high x 3400mm wide extended x 355mm base diameter. Weight 9.5kg. Belt length 3.4m, yellow and black chevron hazard pattern. Retraction braked by torque spring and integrated belt brake. Universal belt end clip with locking mechanism. Four-way connection from one belt and three receiving splines. Post material steel in black, rust-resistant finish. Base cast iron with full circumference rubber ring. Heavy-duty construction. Assembly required, post and base screw together with supplied fixings. Indoor use and sheltered temporary outdoor use, not weatherproof. Displaysense, UK display product specialists since 1978. Free UK mainland delivery.
Technical reference for the steel retractable barrier with 3.4m yellow and black chevron belt, model BQ250Y. Figures apply to the assembled post with the belt fully extended. Belt length, connection count and base weight are the three worth checking against a site layout before ordering.
| Specification | Detail | What This Means for You |
|---|---|---|
| Belt Length | 3.4m extended | Covers a longer span than most retractable barriers, so a given run needs fewer posts and a site carries less stock to fence the same area off. |
| Belt Pattern | Yellow and black chevron | Diagonals are the pattern sites already read as caution, so a run marks a hazard and not a queue, and staff respond to it accordingly. |
| Connection | Four-way, one belt and three receivers | Any post works as a corner, a junction or an end, which means one product covers every layout instead of separate terminal and corner units. |
| Belt Retraction | Braked, torque spring driven | The webbing draws back at a controlled speed instead of snapping toward whoever released it, which matters on a post handled dozens of times daily. |
| Belt End Clip | Universal fitting with lock | Connects to the receivers used by most major barrier brands, and locks in place so a passing trolley cannot release an entire run by catching it. |
| Post Height | 1015mm | Standing height for a boundary that looks deliberate. Tall enough to see down a long aisle and low enough not to block sightlines across a floor. |
| Base | Cast iron, 355mm diameter | Weight sits low where it does the most good, holding the post upright when somebody walks into it or a trolley clips the edge in passing. |
| Floor Protection | Full circumference rubber ring | Rubber runs the whole way round instead of a few pads, so a resin or tiled floor takes no marking and the base grips on polished concrete. |
| Post Material | Steel, rust-resistant finish | Stands up to a loading bay, a wash-down area or an occasional damp night, which is what a barrier moved and stacked constantly runs into. |
| Weight | 9.5kg | One person carries and repositions a post without help, so a layout gets changed by whoever is on shift, with no second pair of hands needed. |
| Assembly | Post and base screw together, fixings supplied | Goes together on site without tools and comes apart the same way, which suits barriers stored flat between events or jobs. |
| Environment | Indoor and sheltered temporary outdoor use | Suits warehouses, concourses, stockrooms and covered areas. Not specified for prolonged exposure to rain or standing outdoors permanently. |
Free delivery on every order, no minimum spend
UK Mainland standard delivery included on everything we sell.
Standard
Free
Always included, no minimum order
Express
£9.95
Express options shown at checkout where available
Lead time
2 to 3 days
Working days, UK Mainland
Returns
28 days
Original condition and packaging
Good to know
- Orders before 4pm typically ship the same day
- Tracking email sent on dispatch
- Ground-floor, accessible delivery point
Returns must be unused and in original packaging. Full delivery information · Returns policy
Questions About This Chevron Belt Safety Barrier
Q: What is the best barrier for marking a hazard zone in a warehouse?
A: The BQ250Y is built for that. A 3.4m yellow and black chevron belt signals caution, not queue management, so a forklift driver at the far end of an aisle understands the run without getting close to the line. The post stands 1015mm high on a cast iron base and weighs 9.5kg once assembled.
Q: Is the chevron belt suitable for health and safety zones?
A: Yes. Diagonal yellow and black is the pattern sites already associate with caution, which is why chevron suits hazard marking, restricted zones and temporary exclusions. Staff take the pattern as a warning without briefing, and that recognition holds up at distance and in peripheral vision. Nobody stops to work out what a run of chevron is telling them on a working site floor.
Q: How long is the belt and how far apart can posts go?
A: The belt extends to 3.4 metres, which is longer than most retractable barriers manage. That span means fewer posts for a given run, so fencing off the same area takes less stock off the shelf and less time setting the line out at the start of a job.
Q: Does the belt snap back when released?
A: No. A brake works alongside the torque spring, so the webbing draws in at a controlled speed instead of firing back toward whoever released the clip. On a post handled dozens of times a day, that is the difference between a working tool and something that becomes a hazard in its own right.
Q: What does four-way connection mean on this barrier?
A: One belt pulls from the cassette and three further receivers sit around the post head, so belts arrive from up to four directions at once. Any post becomes a corner, a junction or an end, which means one product covers every layout, instead of stocking separate corner and terminal units.
Q: Will the belt clip connect to barriers I already own?
A: In most cases yes. The end clip uses a universal fitting compatible with the receivers on most major barrier brands, so a post joins a line you already own without starting a second incompatible set alongside it. The clip locks as well, so a passing trolley or a caught sleeve cannot release the whole run in one go.
Q: Will the base mark or scratch a polished floor?
A: No. Rubber runs the full circumference of the base instead of sitting as three or four separate pads, so a resin, tiled or polished concrete floor takes no marking. That continuous ring also stops the base skidding away when somebody knocks the post, which matters on a smooth trade floor.
Q: Does this barrier need assembling?
A: Only lightly. The post and base arrive separately and screw together using the fixings supplied, with no tools involved at any point. They come apart the same way, which suits contractors who stack barriers flat between events, or move a set of them from one site to the next in a van.
Q: Can this barrier be used outdoors?
A: For short spells under shelter, yes. The barrier is specified for indoor use and temporary outdoor use in dry conditions, not for standing out permanently. Prolonged rain exposure is outside what the finish and the belt cassette are built for.
Q: How heavy is the post and can one person move a barrier?
A: Each post weighs 9.5kg, which one person carries and repositions unaided across a floor. That keeps a layout change in the hands of whoever is on shift, while leaving enough cast iron in the base to hold the post upright when somebody walks into the run.
Q: Which belt colour should I choose for my site?
A: Choose chevron for hazard marking and plain colours for queue management, because staff respond to the two patterns differently. The BQ250BK carries a plain black belt on the same post where the job is directing people through a space and not warning them away from an area. Both share the post.
Q: Is UK delivery included with this safety barrier?
A: Delivery to the UK mainland costs nothing and returns run to 28 days. Posts arrive with the base and fixings ready to assemble. A site can have a full run standing on the day the order lands, with no fitter to book and no second delivery following on behind.
